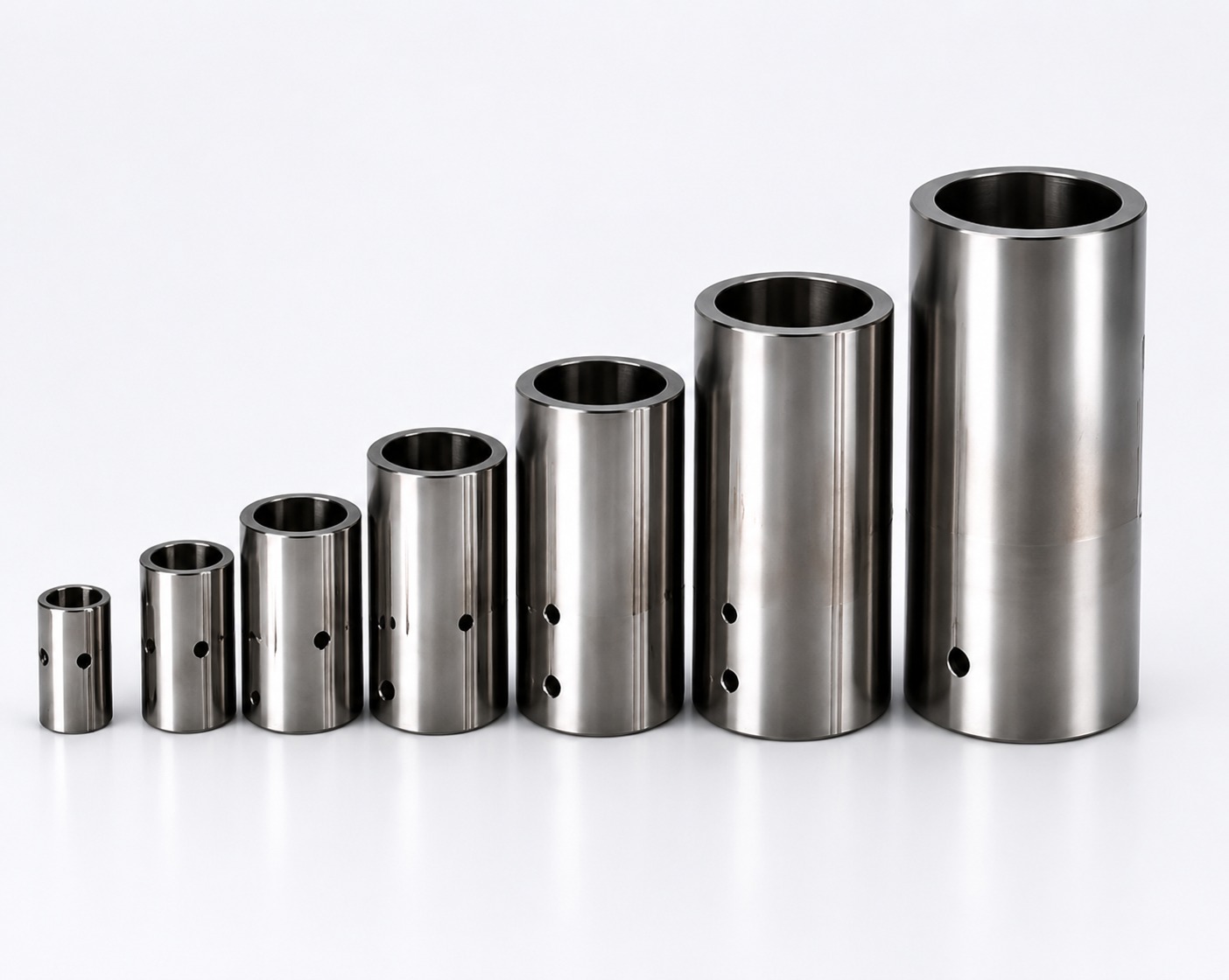

CROSS TUBES AND SLEEVES

Also Known As: Cross Tube Mount, Pivot Tube, Weld-On Mount, Bush, Bushing, Bearing Sleeve, Liner, Wear Sleeve, Pin & Bushing Assembly

• Min Dia 25.4MM
• Max Dia 130MM
• Length Max 300MM
• End Use: Hydraulic Cylinder

BASE PLATE AND END COVER

Also Known As: Cap, Cylinder Cap, Cylinder Bottom, Base, Base Plate, Butt Plate, Blind-End Cap, Rear Cap, End Cap
(India: Gland, Gland Cover, Cap End Cover, End Cover)

• Min Dia 50MM
• Max Dia 240MM
• Length Max 100MM
• End Use: Hydraulic Cylinder

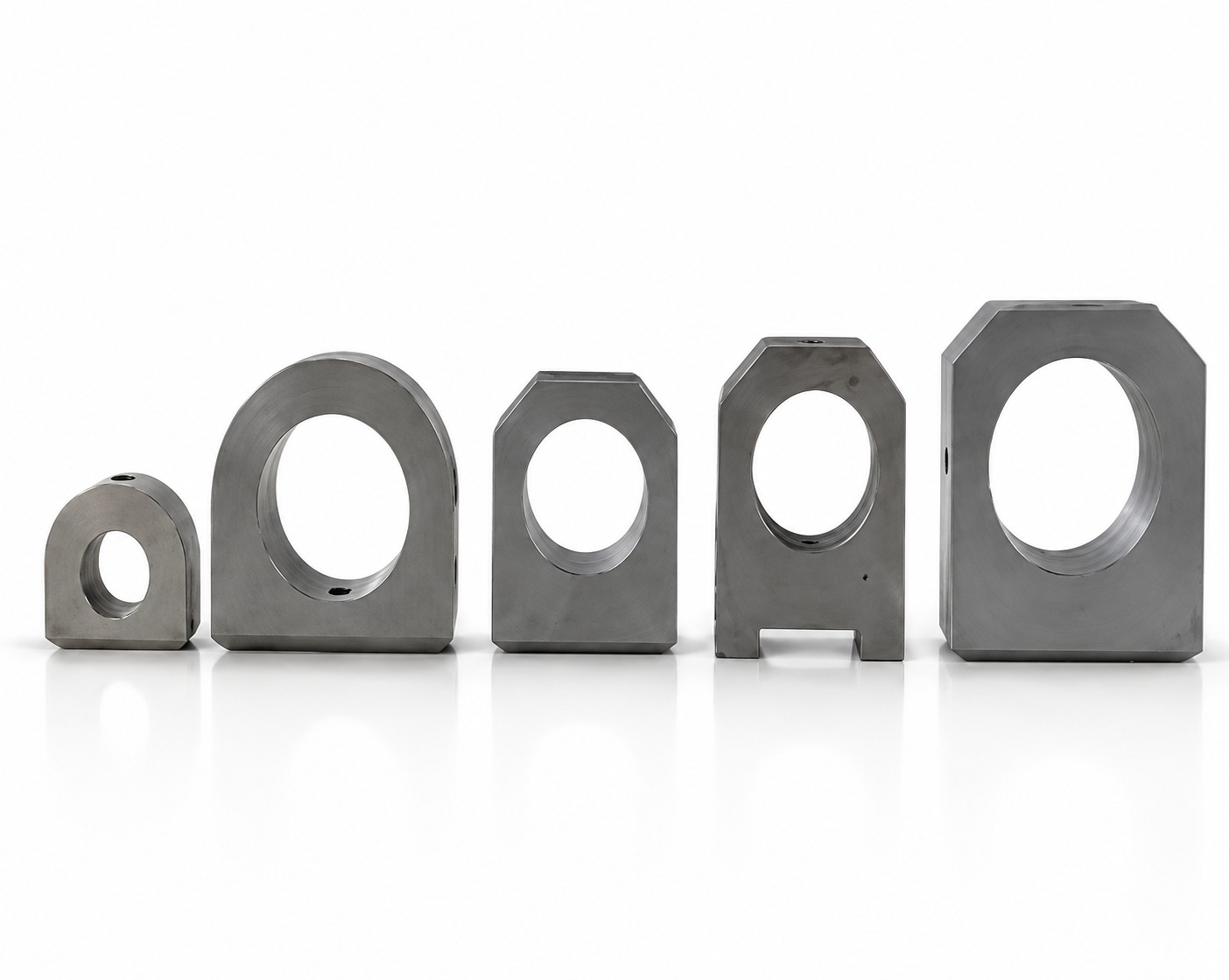

TANG

Also Known As: Mounting Ear (ME/MEA), Lug Mount, Single Lug Eye Bracket, Burning Lug, Machined Lug
Preferred: Hydraulic Cylinder Tang

• Shapes: Semi Circle,
  Rectangle, Square
• End Use: Hydraulic Cylinders
•

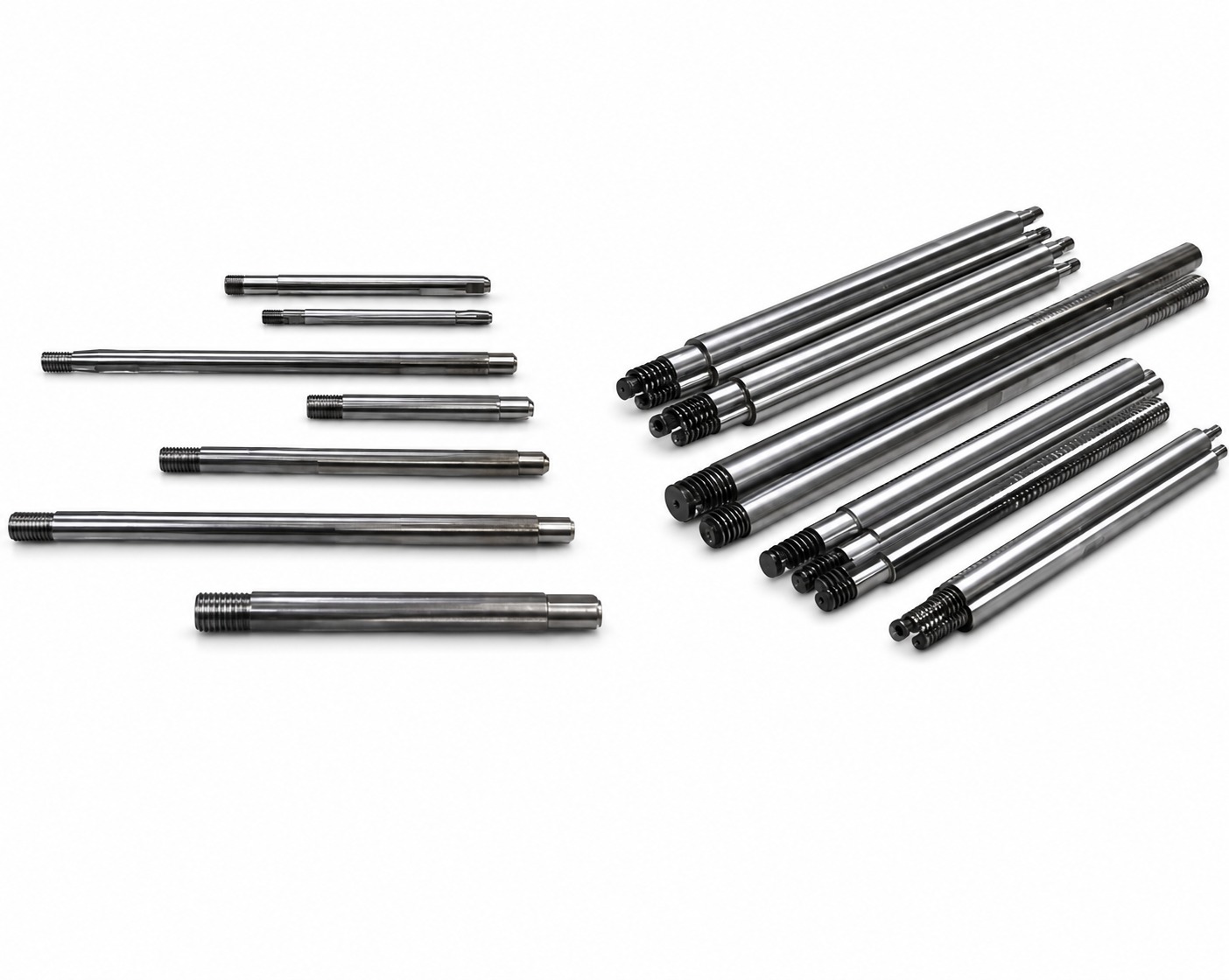

TIE RODS / STUDS / PISTON RODS

Also Known As: Tie Bolt, Through-Bolt, Double-End Stud, Threaded Rod, Stud Bolt, Ram, Cylinder Shaft, Plunger, Piston Stem, Shaft

• Min Dia 8MM
• Max Dia 24MM
• Length: From 100MM to 1600MM

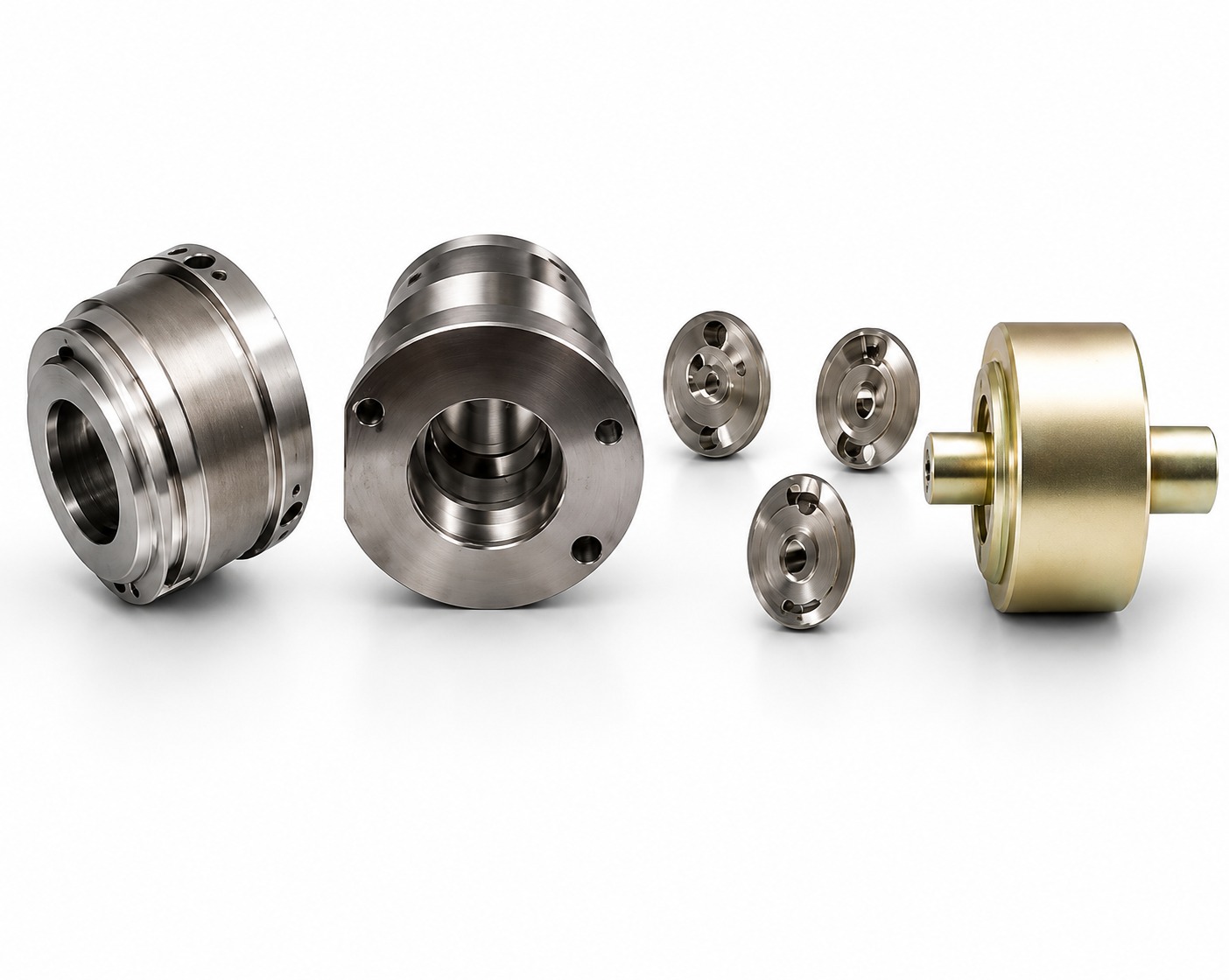

CYLINDER HEAD / PISTON / GLAND

Also Known As (Head/Gland): End Cap, Rod Gland, Rod-End Cover, Packing Gland, Stuffing Box. (Piston): Piston Body, Piston Head

Different Types of Precision Machined Parts
